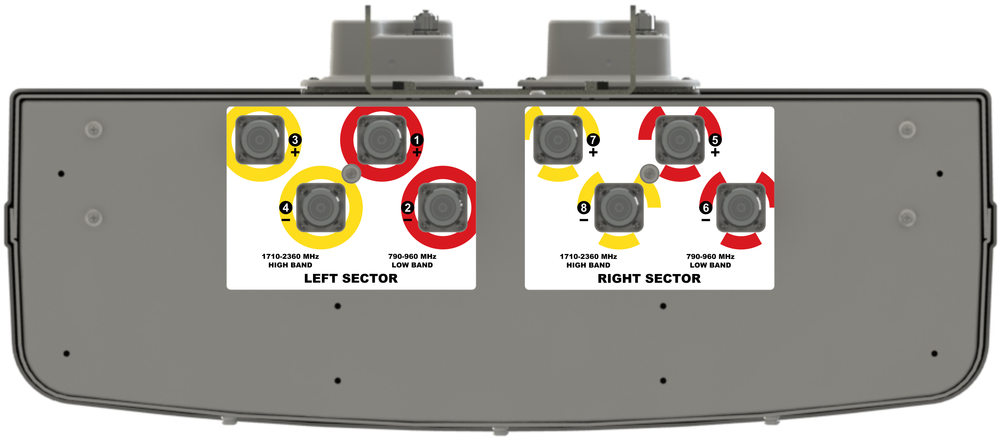

The CCI Multi-Band Bi-Sector^TM Antenna is an LTE optimized phased array that provides a total of four low band ports covering the 800 MHz thru 900 MHz bands and four high band ports covering the DCS 1800 and UMTS 2100 bands in a single, compact enclosure. Our patented bi-sector technology enables the creation of two asymmetric 33° beams, each containing two low band and two high band ports. The antenna is capable of 2x2 MIMO in both low and high bands. The beam shapes have been optimized for minimum overlap and crossover in order to minimize interference across sectors and lower soft handover losses. As such, the antenna array enables maximized data throughput for EVDO, UMTS and LTE networks.

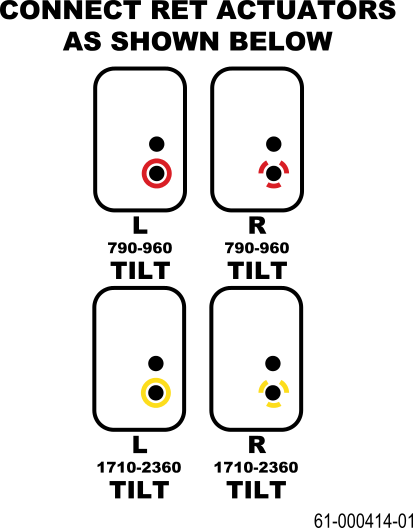

The remote electrical tilt (RET) Series Multi-Band Bi-Sector^TM Antenna enables operators to remotely control the electrical down-tilt of the antenna in the field with sealed AISG compliant RET actuators. The CCI RET system is designed to meet the reliability, flexibility and efficiency requirements in a wide range of environments. The RET actuators are fully AISG compliant, software upgradeable, daisy chaining capable and fully weather resistant. The remote electrical capability allows independent adjustment of the low band ports and high band ports of each sub-beam for easier optimization. This antenna is also available as a variable electrical tilt (VET) model.

The single panel design of the antenna array offers the opportunity to reduce antenna count and directly replaces the footprint of an existing 65° antenna. The new coverage that matches the existing footprint minimizes the need for optimization and adjacent site changes, and allows for significant CAPEX and OPEX cost savings.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.
