      Multi-band Bi-Sector™ Array BSA-M65R-UV-H8




  PI BSAM65RUVH8 front iso PI BSAM65RUVH8 REAR iso
  • Eight foot (2.3 m), eight port, dual beam antenna with patented asymmetrical beam shapes optimized for LTE
  • Four wideband 33° beams to match existing 65° patterns; one pair of beams covering 1695-2400 MHz and the other pair covering 2300-2690 MHz
  • Ultra-wideband performance yields uncompromised antenna patterns in each of the 1695-2400 MHz and 2300-2690 MHz bands while eliminating the need for diplexing to deploy both bands simultaneously

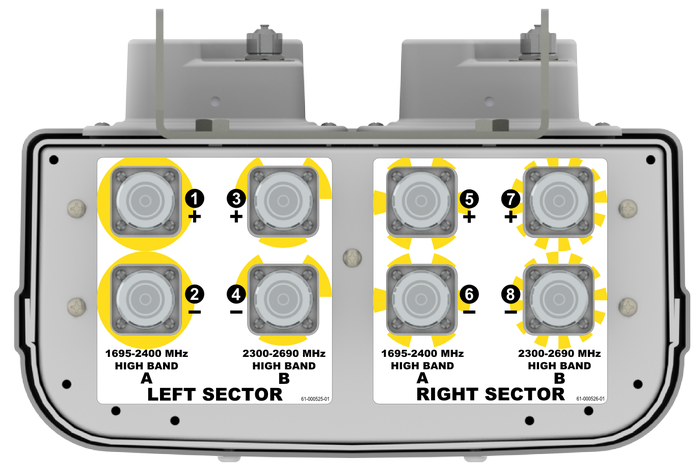

  • One pair of +45° and –45° cross-polarized ports for each beam
  • Slim and low weight single panel design supporting two beams in a single antenna
  • Field replaceable, integrated AISG 2.0 compliant Remote Electrical Tilt (RET) system with independent tilt control for each beam
  • Dramatic increase in site capacity through higher order sectorization which offsets the need to build new sites
  • Boosts data throughput by minimizing interference and optimizing coverage
  • Sharp elevation beamwidth aides in network planning
  • Optimal elevation sidelobe performance
  • Exceeds minimum PIM performance requirements
Model BSA-RET200   Remote Electrical Tilt System (RET)
Configuration File
