Datasheet

TriBand Antenna

HPA65F-KE2A

Two foot (0.6 m), TriBand, six port antenna with a 65° azimuth beamwidth covering 698-960 MHz and 1695-2690 MHz frequencies
Four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz in a single antenna
Full Spectrum Compliance 698-960 MHZ / 1695-2690 MHz
LTE Optimized FBR and SPR performance, providing for an efficient use of valuable radio capacity
LTE Optimized Boresight and Sector XPD and USL performance, essential for LTE Performance
Exceeds minimum PIM performance requirements
4.3-10 connector, which is 40% smaller than traditional 7/16 DIN connector

Overview

The CCI TriBand is a six port antenna, with four wide high band ports covering 1695-2690 MHz and two wide low band ports covering 698-960 MHz. The CCI TriBand antenna provides the capability to deploy 4×4 Multiple-input Multiple-output (MIMO) in the high band and 2x2 Multiple-input Multiple-output in the low band.

CCI antennas are designed and produced to ISO 9001 certification standards for reliability and quality in our state-of-the-art manufacturing facilities.

Applications

4×4 MIMO for the high band and 2×2 MIMO for the low band
Ready for Network Standardization on 4.3-10 connectors
With CCI’s TriBand antennas, wireless providers can connect multiple platforms to a single antenna, reducing tower load, lease expense, deployment time and installation costs

Electrical

Ports	2 × Low Band Ports for 698-960 MHz
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain	10.8 dBi	10.8 dBi	10.9 dBi	10.9 dBi
Azimuth Beamwidth (-3dB)	65°	70°	67°	61°
Elevation Beamwidth (-3dB)	31.7°	29.5°	28.8°	27.9°
Electrical Downtilt	6°	6°	6°	6°
Elevation Sidelobes (1st Upper)	< -20 dB	< -20 dB	< -18 dB	< -17 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 25 dB	> 25 dB	> 25 dB	> 24 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	500 watts	500 watts	500 watts	500 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	698-806 MHz	790-862 MHz	824-896 MHz	880-960 MHz
Gain over sub band (dBi)	10.7	10.6	10.6	10.5
Gain over sub band Tolerance (dB)	0.2	0.2	0.2	0.3
Azimuth Beamwidth Tolerance (°)	2.8	3.0	5.4	3.3
Elevation Beamwidth Tolerance (°)	1.8	0.9	1.4	1.0
Electrical Downtilt Deviation (°)	2.1	1.9	1.5	1.2
First Upper Sidelobe Suppression (dB)	17.1	17.3	19.8	13.8
Front-to-Back Ratio over ±20° (dB)	23.7	26.1	26.2	27.0
Cross-polar Discrimination ±60° (dB)	10.2	11.0	10.0	10.2
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Ports	4 × High Band Ports for 1695-2690 MHz
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain	13.4 dBi	13.6 dBi	14.0 dBi	13.9 dBi	13.9 dBi
Azimuth Beamwidth (-3dB)	61°	59°	59°	62°	63°
Elevation Beamwidth (-3dB)	20.7°	19.3°	18.5°	16.5°	14.5°
Electrical Downtilt	4°	4°	4°	4°	4°
Elevation Sidelobes (1st Upper)	< -15 dB	< -18 dB	< -20 dB	< -19 dB	< -12 dB
Front-to-Back Ratio @180°	> 35 dB	> 35 dB	> 35 dB	> 35 dB	> 35 dB
Cross-Polar Discrimination at Peak	> 18 dB	> 18 dB	> 19 dB	> 25 dB	> 24 dB
Cross-Polar Port-to-Port Isolation	> 25 dB	> 25 dB	> 25 dB	> 25 dB	> 25 dB
Voltage Standing Wave Ratio (VSWR)	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1	< 1.5:1
Passive Intermodulation (2×20W)	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc	≤ -153 dBc
Input Power Continuous Wave (CW)	300 watts	300 watts	300 watts	300 watts	300 watts
Polarization	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°	Dual Linear 45°
Input Impedance	50 ohms	50 ohms	50 ohms	50 ohms	50 ohms
Lightning Protection	DC Ground	DC Ground	DC Ground	DC Ground	DC Ground

BASTA Electrical Specifications*
Frequency Range	1695-1880 MHz	1850-1990 MHz	1920-2180 MHz	2300-2400 MHz	2496-2690 MHz
Gain over sub band (dBi)	12.4	12.9	13.2	13.4	13.4
Gain Tolerance over sub band (dB)	0.8	0.7	0.7	0.6	0.6
Azimuth Beamwidth Tolerance (°)	5.1	4.2	4.5	8.3	10.1
Elevation Beamwidth Tolerance (°)	3.8	2.8	2.8	2.4	2.9
Electrical Downtilt Deviation (°)	1.1	1.0	1.1	0.9	1.1
First Upper Sidelobes Suppression (dB)	9.5	11.8	12.8	11.6	8.6
Upper Sidelobe Suppression Peak to 20° (dB)	16.6	17.4	16.5	15.6	9.0
Front-to-Back Ratio over ±20° (dB)	27.1	26.1	27.0	27.1	30.1
Cross-polar Discrimination at ±60° (dB)	8.7	9.0	8.2	7.1	8.2
* Electrical specifications follow document "Recommendation on Base Station Antenna Standards" (BASTA) V9.6. All specifications are subject to change without notice.

Mechanical

Dimensions (L×W×D)	24.3×11.9×7.6 in (618×303×193 mm)
Survival Wind Speed	> 150 mph (> 241 kph)
Front Wind Load	62 lbs (276 N) @ 100 mph (161 kph)
Side Wind Load	40 lbs (180 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area	2.4 ft² (0.2 m²)
Weight*	14.3 lbs (6.5 kg)
Connector	6× 4.3-10 female
Mounting Pole	2 to 5 in (5 to 12 cm)

* Weight excludes mounting

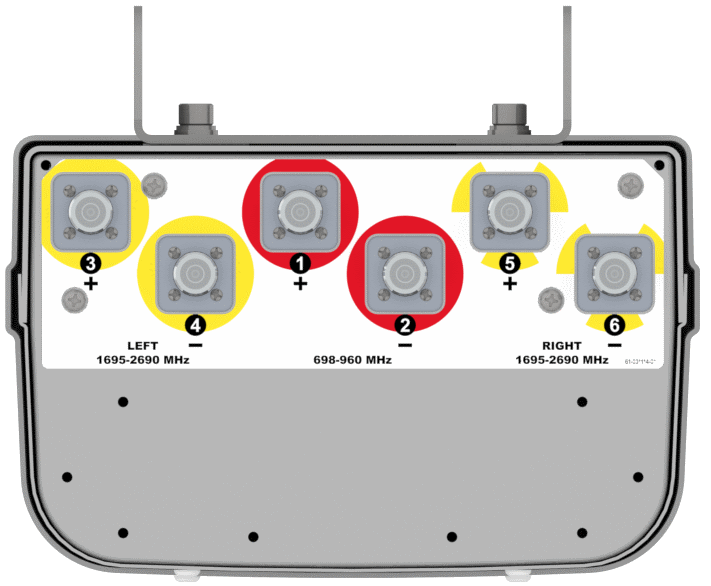

Bottom View	HPA65F-KE2AA

Connection Spacing Diagram	HPA65F-KE2AA

Typical Antenna Patterns

For detailed information on additional antenna patterns, contact customer support at

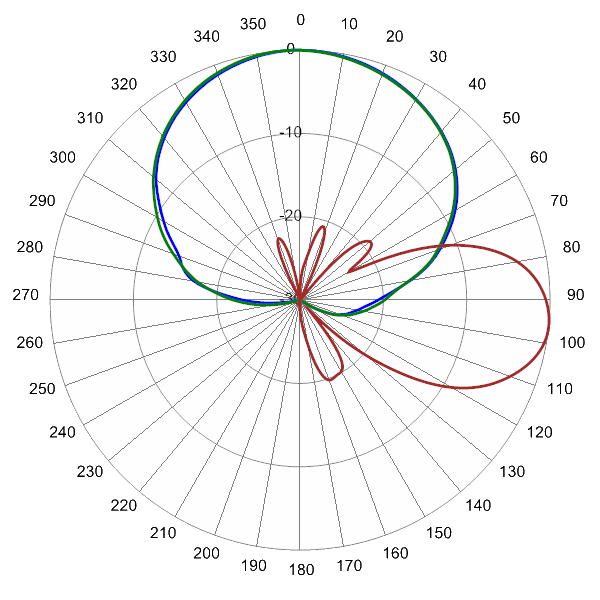

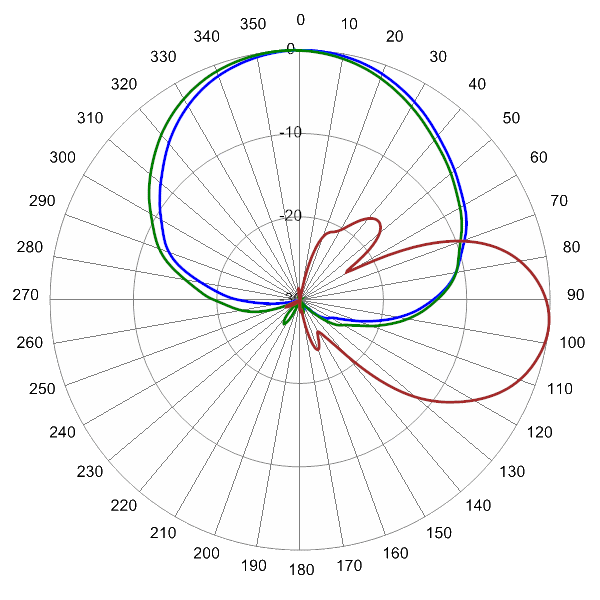

	704 MHz Azimuth with Elevation 6°	850 MHz Azimuth with Elevation 6°

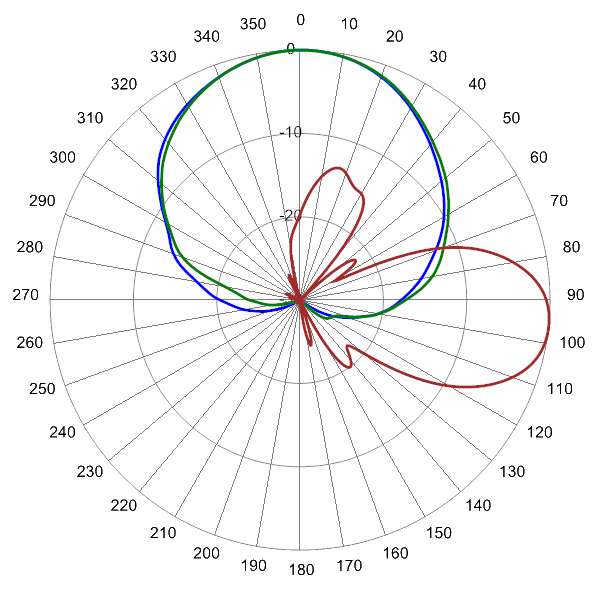

	945 MHz Azimuth with Elevation 6°

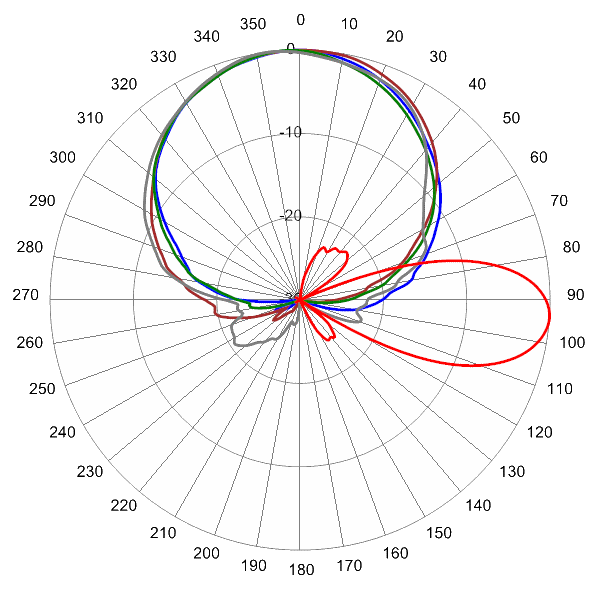

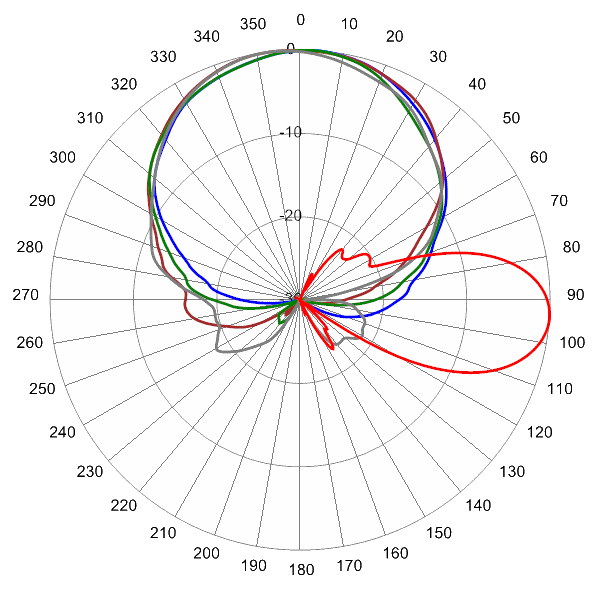

	1710 MHz Azimuth with Elevation 4°	1970 MHz Azimuth with Elevation 4°

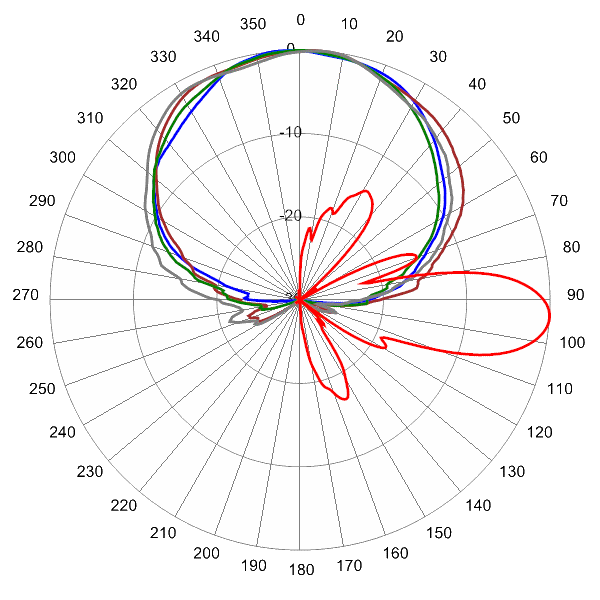

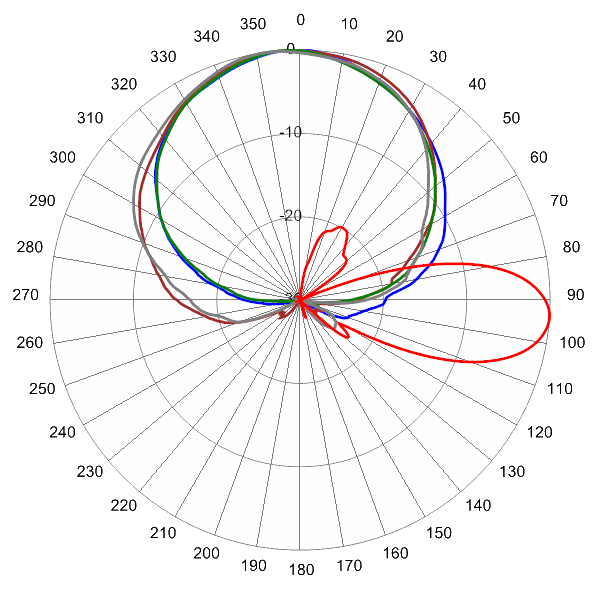

	2155 MHz Azimuth with Elevation 4°	2500 MHz Azimuth with Elevation 4°

MBK-03

MBK-03 Mounting Kit

Product Information

	Datasheet
	HPA65F-KE2A Connector Spacing Diagram
	MBK-03 Installation Guide

	Interactive Pattern Viewer
	CCI Interactive Pattern Viewer Instructions

Antenna Pattern

HPA65FKE2A: Text/Planet Format - Default Azimuth

Parts & Accessories

HPA65F-KE2AA-K	Two foot (0.6 m) TriBand antenna with 65° azimuth beamwidth, 4.3-10 female connectors and MBK-03 mounting bracket
MBK-03	Mounting bracket kit (top and bottom) with 0° to 10° mechanical tilt adjustment

Standards & Compliance

Environmental

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, GR-63-CORE 4.3.1, EN 60529, IP 24

Certifications

Federal Communication Commission (FCC) Part 15 Class B, ISO 9001
