Triple Band Twin TMA (AWS/PCS/WCS) with AWS-3 and 700/850 Bypass |
TMABPD7823VG12A | |||
![]() |
|
Overview

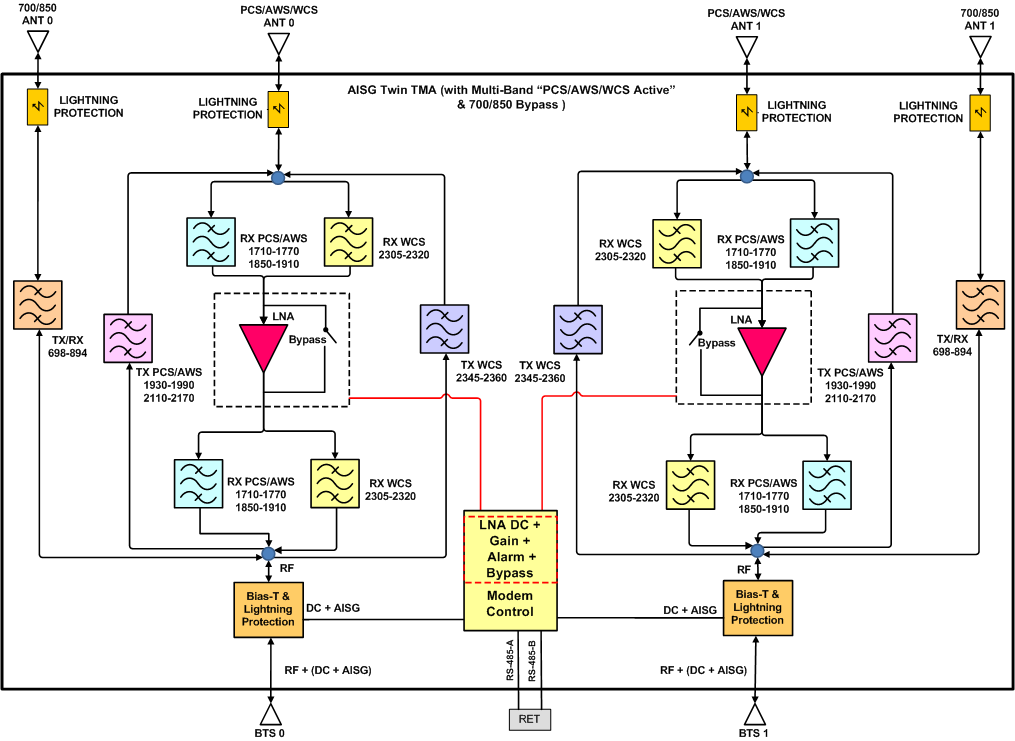

CCI’s Triple Band Twin TMA (AWS/PCS/WCS), which includes AWS-3 and 700/850 bypass, contains two triple band TMA’s in a single housing. Each TMA in the housing is fully duplexed and shares a single LNA for all three bands. The bypass path provides excellent isolation to the TMA path. Separate antenna ports for the bypass path and TMA path are combined onto a single BTS port. The Twin TMA's low noise, highly linear amplifiers improve the uplink sensitivity and the receive performance of the base station. The TMA is fully compliant with the AISG 2.0 specification and supports CDMA, EDGE/GSM, UMTS and LTE BTS equipment. The unit is ideally suited for sites upgraded to quad-band using the existing infrastructure. The TMA allows the sharing of feeder lines for all bands thus reducing tower loading, leasing, and installation costs. The input and output connectors are located inline for ease of installation in space constrained areas such as uni-pole structures and stealth antennas. Technical Description: The TMA system is an outdoor triple band twin tower mount unit which provides low noise amplification of PCS, AWS, AWS-3, and WCS uplink signals combined with 700/850 bypassed signals from separate antenna ports to a common BTS port. The tower mount unit consists of 14 band-pass filters, two redundant low noise amplifiers(LNA) with bypass failure circuitry, two bias tees, AISG control circuitry, and lightning protection circuitry all housed in an IP67 enclosure suited to long life masthead mounting. The AWS, PCS and WCS paths are dual duplexed to separate the low power uplink signals from the high power down link signals at the BTS and antenna ports. The AWS, PCS, and WCS uplink signals are amplified with a dedicated ultra-low noise PHEMT LNA with adjustable gain control. The unit provides protection against lightning strikes via a multistage surge protection circuit. DC power and AISG 2.0 control is provided via the BTS feeder cable. The unit operates in current window alarm (CWA) mode until a valid AISG message is detected, at which point it automatically switches to AISG mode. Once in AISG mode, the unit can only switch back to CWA mode with the receipt of an AISG CCI vendor defined command. In CWA mode, the unit requires 12VDC at each BTS port and follows typical current window convention. In AISG mode, the unit will accept 10-30 VDC from either BTS port. In AISG mode, the unit does not require an AISG 2.0 compatible site control unit(SCU) and may also be powered by a standard power distribution unit (PDU). |
Electrical
RF Parameters | Ports | Frequency(MHz) | Specification |
Return Loss (minimum) | 700/850 ANT | 698 - 894 | 18 dB |
PCS/AWS/WCS ANT | 1850 - 1910 | 18 dB (10 dB bypass mode) | |
1930 - 1990 | 18 dB | ||
1710 - 1780 | 18 dB (10 dB bypass mode) | ||
2110 - 2180 | 18 dB | ||
2305 - 2320 | 18 dB (10 dB bypass mode) | ||
2345 - 2360 | 18 dB | ||
BTS | 698 - 894 | 18 dB | |
1850 - 1910 | 18 dB (10 dB bypass mode) | ||
1930 - 1990 | 18 dB | ||
1710 - 1780 | 18 dB (10 dB bypass mode) | ||
2110 - 2180 | 18 dB | ||
2305 - 2320 | 18 dB (10 dB bypass mode) | ||
2345 - 2360 | 18 dB | ||
Gain Setting | PCS/AWS/WCS ANT to BTS |
1710 - 1780, 1850 - 1910, 2305 - 2320 | 6 to 12 dB adjustable in 0.25 dB steps via AISG (± 1.0 dB) |
Gain, Actual (when set for 6 dB) |
PCS/AWS/WCS ANT to BTS |
1710 - 1780, 1850 - 1910 | 6 ± 1.0 dB |
2305 - 2320 | 5 ± 1.0 dB | ||
Gain, Actual (when set for 9 dB) |
PCS/AWS/WCS ANT to BTS |
1710 - 1780, 1850 - 1910 | 9 ± 1.0 dB |
2305 - 2320 | 8 ± 1.0 dB | ||
Gain, Actual (when set for 12 dB) |
PCS/AWS/WCS ANT to BTS |
1710 - 1780, 1850 - 1910 | 12 ± 1.0 dB |
2305 - 2320 | 11 ± 1.0 dB | ||
Insertion Loss | 700/850 ANT - BTS | 698 - 894 | 0.25 dB typical |
PCS/AWS/WCS ANT to BTS (RX Bypass mode) |
1850 - 1910 | 2.5 dB typical | |
1710 - 1780 | 2.5 dB typical | ||
2305 - 2320 | 4.5 dB typical | ||
PCS/AWS/WCS ANT to BTS (TX) |
1930 - 1990 | 0.5 dB typical | |
2110 - 2180 | 0.4 dB typical | ||
2345 - 2360 | 0.7 dB typical | ||
Isolation | 700/850 ANT to PCS/AWS/WCS ANT | 698 - 894 | 70 dB |
1710 - 2360 | 70 dB | ||
Noise Figure | PCS/AWS/WCS ANT to BTS |
1850 - 1910 | 1.5 dB typical |
1710 - 1780 | 1.3 dB typical | ||
2305 - 2320 | 2.3 dB typical | ||
Input Third Order Intercept Point (minimum) | PCS/AWS/WCS ANT to BTS |
1710 - 1780 | +12 dBm at maximum gain |
1850 - 1910 | +12 dBm at maximum gain | ||
2305 - 2320 | +12 dBm at maximum gain |
General Characteristics | |
Impedance | 50 ohms |
Continuous Average Power | 200 W max. |
Peak Envelope Power | 2 kW max. |
Intermodulation Performance(all ports) | <-117 dBm (-160 dBc) typical (2 × +43 dBm tones) all bands |
Operating Voltage | +10V to +30V DC provided via coax or AISG |
Power Consumption | < 2.0 W |
Mechanical
Connectors | 6 × 7-16 DIN female 1 × AISG |
Dimensions enclosure (H×W×D) | 10.63 × 11.04 × 3.75 in. (270.0 × 280.3 × 95.2 mm) |
Dimensions with brackets (H×W×D) | 14.22 × 11.56 × 4.24 in. (361.8 × 293.5 × 107.6 mm) |
Weight enclosure | 25.0 lbs (11.3 kg) |
Weight with brackets | 26.0 lbs (11.8 kg) |
Mounting | Pole/Wall mounting bracket |
![]() |
|
TMABPD7823VG12A Outline Drawing |
Accessories
SCU-AISG2-3 | AISG 2.0 Site Controller |
RET-CBK | AISG Cable Kit |
BT-0821-DMDF-AG-O | DIN-Male RF Port, DIN-Female RF+DC+AISG Port |
BT-0821-DFDM-AG-O | DIN-Female RF Port, DIN-Male RF+DC+AISG Port |
BT-0821-DFDF-AG-O | DIN-Female RF Port, DIN-Female RF+DC+AISG Port |
Standards & Compliance
Safety | EN 60950-1, UL 60950-1 |
Emission | EN 55022 |
Immunity | EN 55024 |
Environmental | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, IEC61000-4-5, GR-63-CORE 4.3.1, EN 60529 IP68 |
|
