4×4 MIMO Multibeam (MBM) 6 Beam Product Series

CCI is proud to announce a major innovation and product addition to our Multibeam Antenna portfolio of products. The industry’s first Multibeam Panel Antenna, with full 4x4 MIMO capability. The CCI Multifunction Multibeam Antenna contains 6 independent LTE optimized beams with 4×4 MIMO capability or 12 independent LTE optimized beams with 2×2 MIMO capability or any other combination of 4×4 MIMO/2×2 MIMO deployment, providing unapparelled frequency and MIMO configuration capability.

The CCI Multifunction Multibeam Antenna, with 4×4 MIMO deployed on any of the available beams greatly enhances capacity and data throughput over conventional 2x2 MIMO deployments. Spectrum reuse through sectorization is also improved over conventional 2×2 MIMO multibeam deployments.

CCI’s LTE optimized beam design provides fast roll-off between beams, minimizing interference between sectors thus increasing the carrier interference noise ratio (CINR) and lowering soft handover losses in LTE networks. This approach enhances data transfer rates within LTE network sectors and addresses “hot spots” in mobile wireless networks.

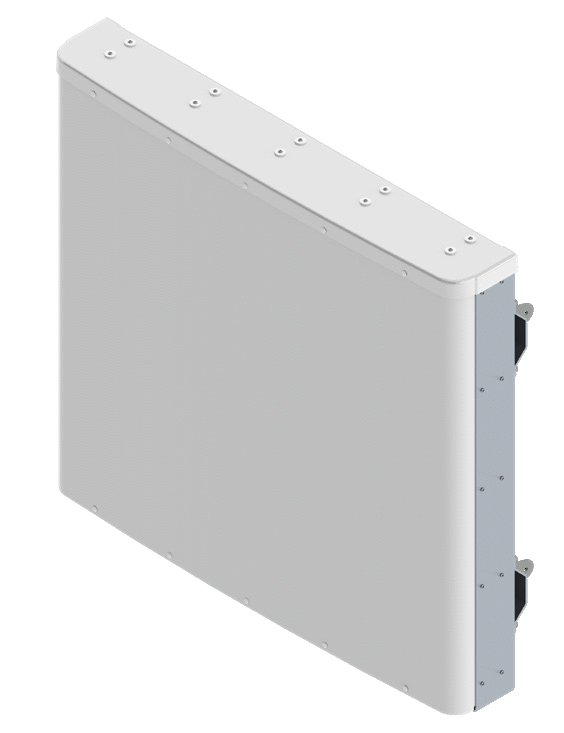

MBM6Front
   pdficon large
Download PDF

KEY FEATURES AND BENEFITS
4X4 MIMO MBN SERIES
  • First 4×4 MIMO Multibeam
    Antenna
  • Capable of 4×4 and/or 2×2
    MIMO configurations
  • Supports up to six (6) 4T4R
    or twelve (12) 2T2R eNodeB
    (eNB) Radios
  • Greatly enhances capacity
    and data throughput
  • 24 ports of full spectrum
    compliance 1695-2690 MHz
    and all subsequent sub-bands
4x4 MIMO
MBM 6 Beam Series
MBM6F-xxx

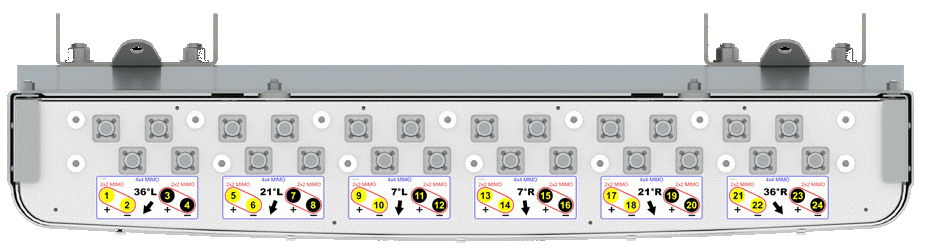

MBM6Bottom

4x4 MIMO Multibeam Antenna-MBM 6 Beam Series

CCI Model/Part Dimensions
(LxWxD)
EDT / RET
Configuration
Low Band
Ports
High Band
Ports
MBM6F-E3B
    MBM6F-E3BA-K
40.0" x 42.5" x 7.1"
Fixed EDT
NA 24 Wide Band
1695-2690 MHz
MBM6F-P3B
    MBM6F-P3BA-K
40.0" x 42.5" x 7.1"
Fixed EDT
NA 24 Wide Band
1850-1995 MHz
MBM6F-U3B
  MBM6F-U3BA-K
40.0" x 42.5" x 7.1"
Fixed EDT
NA 24 Wide Band
1695-2400 MHz
MBM6F-W3B
    MBM6F-W3BA-K
40.0" x 42.5" x 7.1"
Fixed EDT
NA 24 Wide Band
1695-2180 MHz
MBM6F-V3B
    MBM6F-V3BA-K
37.4" x 31.3" x 6.4"
Fixed EDT
NA 24 Wide Band
2300-2690 MHz



CCI antennas are deployed worldwide and engineered using the latest design techniques that provide optimal performance and multiple technologies in a single antenna . . .reducing tower load, lease expense and deployment/installation expense while providing unique solutions that enhance performance and increase capacity to address the ever-changing demands on carrier network.
