The CCI Broadband Triplexer combines three bands, DCS (1710-1880), UMTS 2100 (1920-2170) and 2300/2600 band (2300-2700) onto a common port. Specifically intended for use in multi-band systems with limited feeder lines, this CCI Triplexer facilitates the addition of new technologies including LTE and new spectrum including LTE 2600 to existing sites while providing a high degree of isolation between systems. Decreasing the number of feeder lines lowers tower loading, leasing and installation expenditures and the total cost to upgrade a site is significantly reduced. The CCI Broadband Triplexer provides full band performance for each band with low insertion loss, low Intermodulation, and high power handling. Excellent return loss delivers the best match to the antennas and base station, saving precious transmit power. The Triplexer offers the option of full Remote Electrical Tilt (RET) and Tower Mount Amplifiers (TMA) capability by providing multiple options for DC and AISG 2.0 compliant pass-through.
Technical Description:

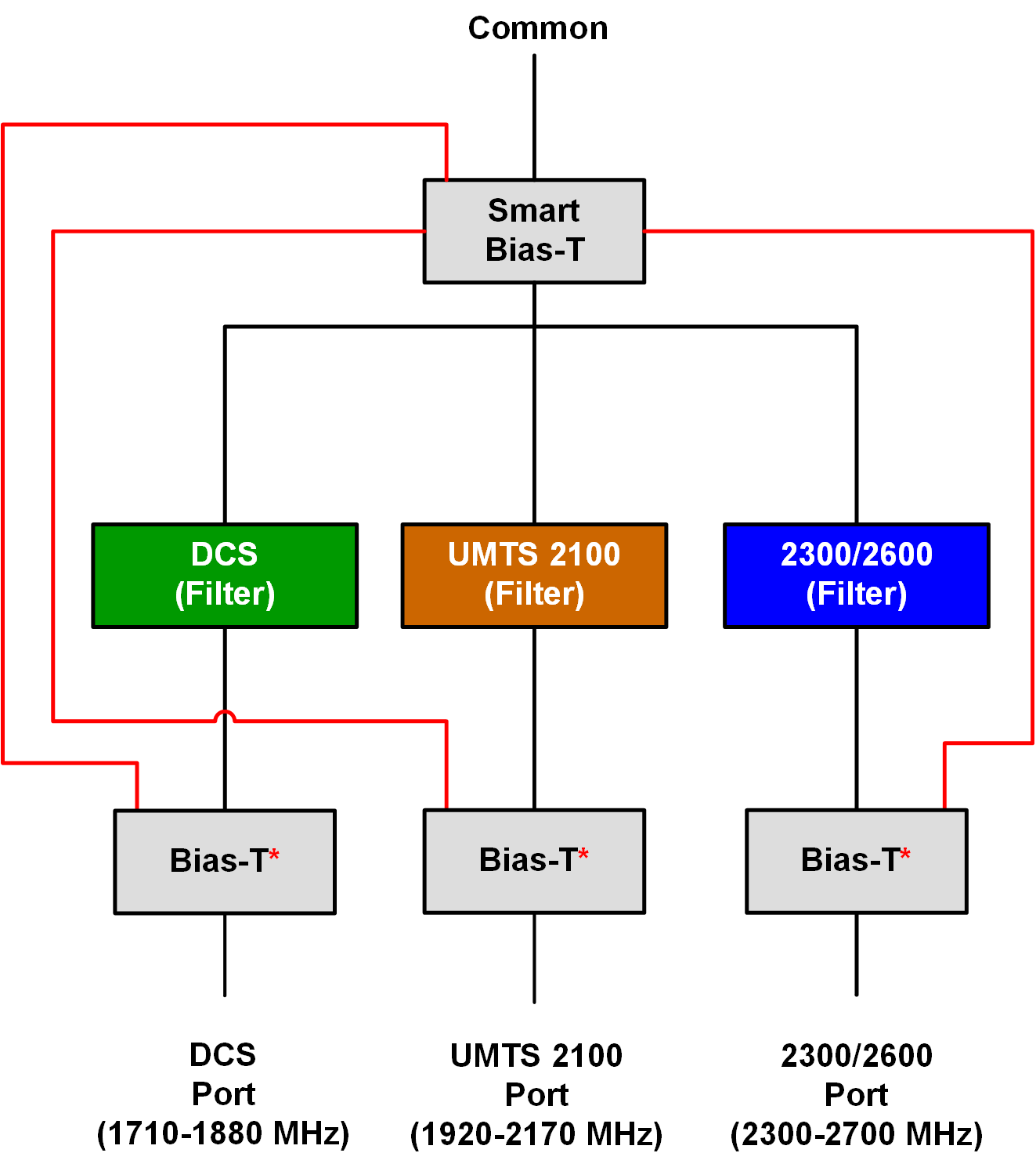

The Triplexer consists of multiple filters and can be used as either a splitter or combiner to aggregate the DCS, UMTS 2100, and 2300/2600 bands on a common feeder line. The fully weatherproof tower mount outdoor triplexer is orderable with DC block on all ports or DC and AISG signal pass-through on any of the band specific ports. When configured with pass-through the Triplexer provides power and control for TMA's & RET antennas. DC and AISG signal pass-through is not available on the indoor rack mounted model. The triplexer has internal multi-strike lightning protection using a multi-stage surge protection circuit. The unit has been designed to minimize insertion loss while maximizing isolation. Particular attention has been given to the intermodulation performance of the Triplexer to minimize any passive intermodulation products from occurring. The Triplexer can be pole or wall mounted with the inlcuded bracket and the unit body is rated for IP67. All RF ports are either DIN 7-16 or optionally 4.3-10 connectors, both of which are IP68 rated. CCI filter and combiner products are designed and produced to ISO 9001 certification standards for reliability and quality at our state-of-the-art engineering and manufacturing facilities.
|
