Outdoor Broadband Triplexer | TPO-080976-xxx | |||
|
Overview

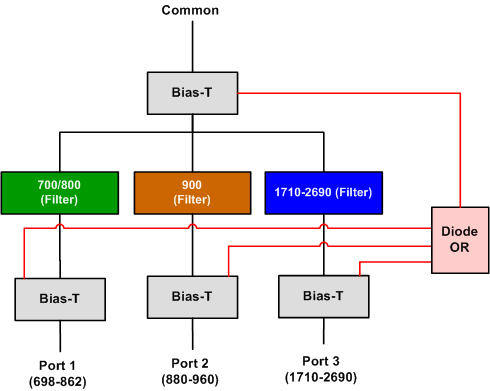

The CCI Outdoor Broadband Triplexer combines 700/800 band (698-862), the 900 band (880-960), and DCS/IMT/IMT-E (1710-2700) bands onto a common port. Specifically intended for use in multi-band systems with limited feeder lines, this CCI Triplexer facilitates the addition of new technologies including LTE and new spectrum onto existing sites, while providing a high degree of isolation between systems. Decreasing the number of feeder lines lowers tower loading, leasing and installation expenditures and the total cost to upgrade a site is significantly reduced. An optional twin unit with two Triplexers mounted on a single bracket is also available. Technical Description: The Outdoor Broadband Triplexer consists of multiple filters and can be used as either a splitter or combiner to aggregate the 700/800 MHz, 900 MHz and DCS/IMT/IMT-E bands on a common feeder line. The fully weatherproof tower mount outdoor Triplexer provides DC and AISG signal pass-through on any of the band specific ports, enabling power and control for TMA's & RET antennas. The Smart Bias-Tee architecture passes the DC and AISG carrier frequency from any one of the input ports to the common port while blocking the DC and AISG signals from being re-injected into the other input ports. The Triplexer has internal multi-strike lightning protection using a multi-stage surge protection circuit. |
Electrical
RF Parameters | Ports | Frequency(MHz) | Specification |
Return Loss | Common | 698 - 862 | 20 dB minimum |
880 - 960 | 20 dB minimum | ||
1710 - 2700 | 20 dB minimum | ||
700/800 | 698 - 862 | 20 dB minimum | |
900 | 880 - 960 | 20 dB minimum | |
DCS/IMT/IMT-E | 1710 - 2700 | 20 dB minimum | |
Insertion Loss | COM to 700/800 | 698 - 862 | 0.5 dB maximun |
COM to 850 | 880 - 960 | 0.5 dB maximum | |
COM to DCS/IMT/IMT-E |
1710 - 2700 | 0.5 dB maximum | |
Isolation | COM to 700/800 | 880 - 960 | 50 dB minimum |
1710 - 2700 | 50 dB minimum | ||
COM to 900 | 698 - 862 | 50 dB minimum | |
1710 - 2700 | 50 dB minimum | ||
COM to DCS/IMT/IMT-E |
698 - 862 | 50 dB minimum | |
880 - 960 | 50 dB minimum |
General Characteristics | |
Impedance | 50 ohms |
Continuous Average Power | 200 W max. per port |
Peak Envelope Power | 2 kW max. per port |
Intermodulation Performance(all ports) | <-117 dBm (-160 dBc) typical (2 × +43 dBm tones) all bands |
DC Pass Current/AISG Pass | 3A/AISG signal (2.176 Mhz) per AISG 2.0 |
Mechanical
Modularity | Single | Twin |
Weight with brackets | 5.75 lbs (2.6 kg) | 11.45 lbs (5.2 kg) |
Dimensions with brackets | 7.87 × 10.86 × 2.66 in. (200 × 276 × 67.5 mm) |
7.87 × 10.86 × 4.86 in. (200 × 186 × 123.5 mm) |
Dimensions Enclosure Only | 7.87 × 7.32 × 2.07 in. (200 × 186 × 52.5 mm) | |
Connectors | 4.3-10 or 7-16 female × 4 - per Triplexer | |
Mounting | Pole/Wall mounting bracket |
Outdoor Broadband Triplexer Outline Drawing |
Accessories
SCU-AISG2-3 | AISG 2.0 Site Controller |
RET-CBK | AISG Cable Kit |
BT-0821-DMDF-AG-O | DIN-Male RF Port, DIN-Female RF+DC+AISG Port |
BT-0821-DFDM-AG-O | DIN-Female RF Port, DIN-Male RF+DC+AISG Port |
BT-0821-DFDF-AG-O | DIN-Female RF Port, DIN-Female RF+DC+AISG Port |
Parts & Accessories
TPO-080976-S-S1 | Outdoor Triplexer with Smart Bias-T and 7-16 DIN connectors |
TPO-080976-S-S2 | Outdoor Triplexer with Smart Bias-T and 4.3-10 connectors |
TPO-080976-S-T1 | Outdoor Twin Triplexer with Smart Bias-T and 7/16 DIN connectors |
TPO-080976-S-T2 | Outdoor Twin Triplexer with Smart Bias-T and 4.3-10 connectors |
Standards & Compliance
Safety | EN 60950-1, UL 60950-1 |
Emission | EN 55022 |
Immunity | EN 55024 |
Environmental | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-5, IEC 60068-2-6, IEC-60068-2-11, IEC 60068-2-14, IEC 60068-2-18, IEC 60068-2-27, IEC 60068-2-29, IEC 60068-02-30, IEC 60068-2-52, IEC 60068-2-64, IEC61000-4-5, GR-63-CORE 4.3.1, EN 60529 IP67, IP68 |
|
